Ultra-Precision Slitting

超精密分条

海铭深耕精密加工多年，分条技术达行业高水平，可为精密不锈钢带、非晶带、铝合金等各类精密带材，提供超精密分条服务，加工厚度覆盖 0.008mm（8 微米）-1.5mm，精准匹配高端制造严苛需求。

Haiming has specialized in precision machining for years, with its slitting technology reaching an industry-leading level. We provide ultra-precision slitting services for various precision strips such as precision stainless steel strips, amorphous strips, and aluminum alloys, covering a thickness range of 0.008mm (8 microns) to 1.5mm, perfectly meeting the rigorous requirements of high-end manufacturing.

材料厚度

Material Thickness Range

0.008mm-0.2mm

0.5 mm

最小分剪宽度 minimum slitting width

±0.03mm

分条宽度公差 Slitting Width Tolerance

材料厚度

Material Thickness Range

0.002mm-0.6mm

1.5 mm

最小分剪宽度 minimum slitting width

±0.03mm

分条宽度公差 Slitting Width Tolerance

材料厚度

Material Thickness Range

0.06mm-1.5mm

3 mm

最小分剪宽度 minimum slitting width

±0.05mm

分条宽度公差 Slitting Width Tolerance

Large-Scale Slitting

大分条

窄剪中厚金属材料是海铭另一技术优势，专业纵剪中厚不锈钢卷等材质。我们可加工 1.5mm~5.0mm 厚度金属材料，窄剪宽度最窄达 4mm，宽度精度 ±0.04mm。

Narrow slitting of medium and thick metal materials is another technical advantage of Haiming. We specialize in the longitudinal slitting of medium and thick stainless steel coils and other materials, capable of processing metals with a thickness of 1.5mm~5.0mm. The minimum slitting width can reach 4mm, with a width precision of ±0.04mm.

材料厚度

Material Thickness Range

1.5mm-5.0mm

4mm

最小分剪宽度 minimum slitting width

±0.04mm

分条宽度公差 Slitting Width Tolerance

Edge Treatment

边部处理

针对 0.15mm以上厚分条金属材料，按需提供去毛刺处理、分条边缘、圆边、倒角、单边倒角处理。

For slit metal materials with a thickness of over 0.15mm, deburring, slit edge finishing, round edge processing, chamfering, and single-side chamfering services are provided on demand.

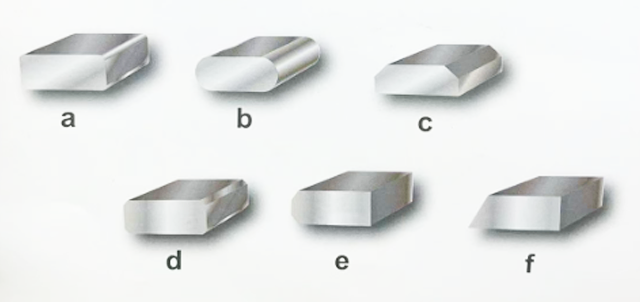

边部示意图

Edge Schematic Diagram
